The following filmstrip shows the operation of the SoakCalc programme Use left and right arrows to see full details of the programme

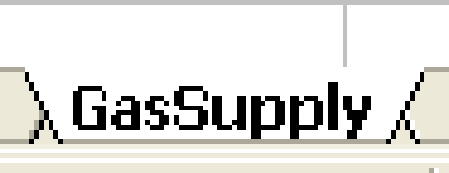

Select gas supply tab
GasCalc is an Excel based menu driven natural gas piping design programme. This programme
is designed to size low pressure natural gas pipe from the gas meter to various gas
The programme is suitable for all common gas piping materials and pipe diameters
up to 200 mm.
The flow rate in the piping is determined using the Pole formula.
The programme accounts for any changes in the pipe level between the gas meter and
the appliance connection.
Typical appliance gas consumption figures are given in the programme and non standard
consumption rates can be input by the user. As additional pipe lengths are added,
together with the attached appliances, the programme automatically sums the total
gas flow for each additional pipe length.
Once the size of a pipe section has been established in the ‘gas supply’ sheet a
macro is used to transfer the necessary data to a summary sheet. Once the complete
network has been sized and all pipe sections are shown on the ‘summary’ sheet the
calculations can be printed out. By using readily available low cost print emulation
software the summary sheet data can be transferred to an ‘AutoCAD’ drawing for submission
to the client or approving authority.
